Micro Automation

Logic Module Logo Control PLC (LOGO)

LOGO! from Siemens offers you the support you need at a price you can afford. Perform small-scale automation tasks more quickly and free up space in your switch cabinet. With 8 basic logic functions and 30/35 special functions, the LOGO! logic module can replace a large number of conventional switching and control devices. The natural logic module choice: LOGO! now is even more versatile for analog value applications and simple control tasks. With LOGO! 8, the successful Siemens logic module has launched the next generation. This new module accommodates virtually every demand of customers with simplified handling, a new display, and full communication options via Ethernet.

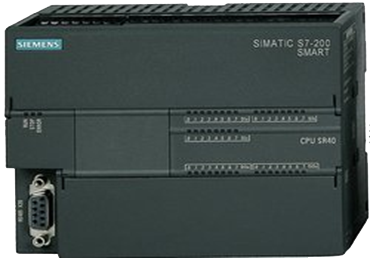

Smart Programmable Controller (SIMATIC S7-200 SMART)

Product Highlights :-
A) More models, more choices:- It provides CPU modules that have a large number of I/O points onboard (up to 60 points.) The CPU module has a standard type and compact type for the users to choose, which can meet the different needs of customers
B) Extension options, accurate customization :- The new signal boards are designed with scalable communication ports, digital or analog channels, that are closely fitting to the user's application requirements, and lower the user’s costs for expansion.
C) High speed chip, excellent performance :- t is equipped with Siemens dedicated processor chip, the basic instruction execution time is up to 0.15 μs, it has the leading performance compared to the micro PLC of the same level, it can easily deal with complex and fast processes.
D) Ethernet interconnectivity, economic and convenient :- All CPUs have integrated Ethernet interface to download the programs conveniently and quickly using the common cable. Through the Ethernet port, it can connect to other Simatic CPUs / HMIs to realize interconnection and set up the network.

Basic Controller (SIMATIC S7-1200)

Automation solutions must be compact, scalable and flexible. S7-1200 CPUs are available as standard and failsafe versions. They are scalable in terms of their performance and are equipped with integrated IOs, inte-grated PROFINET interface for programming, HMI connections, distributed IOs and distri-buted drive architectures. The S7-1200 can be optimally adapted to your individual requirements by means of pluggable signal modules and communication modules. The new modular SIMATIC S7-1200 controller is at the core of our new offering for simple but highly precise automation tasks. The SIMATIC S7-1200 controller is modular and compact, versatile, a secure investment, and is perfectly suited to a whole range of applications. The S7-1200 CPUs with Safety Integrated handle both standard and safety-related tasks. A compact design with integrated IO, communi-cation interfaces that meet the highest industry requirements and a range of powerful integrated technological functions make this controller an integral part of a comprehensive automation solution. The compact SIMATIC S7-1200 system consists of different CPU performance classes: CPU 1211C, CPU 1212C, CPU 1214C, CPU 1215C and CPU 1217C and two failsafe versions CPU 1214FC and CPU 1215FC. Each of these may be expanded according to the machine requirements. The S7-1200 CPUs can be expanded with up to three communication modules (CM) and eight signal modules (SM).

Industrial Automation

Advance Controller (SIMATIC S7-300)

Introduction, Application, Benefits :-
Machine and plant constructors are being increasingly requested to offer more flexible and productive machines at reduced prices. This places new demands on the automation systems with respect to e.g. scope of functions, processing speed and size, as well as engineering and networking. PLCs are required with a large scope of functions and high processing speeds in a compact design. The networking facilities should be improved at the same time, but the engineering requirements should be simultaneously reduced.
SIMATIC® S7-300® is the most widely sold PLC within the context of Totally Integrated Automation with many successful reference applications worldwide found in many different industrial sectors. S7-300 users profit from the experience and global servicing facilities of the market leader as well as the quality associated with SIMATIC. This is the basis for increasing profits and improving competitiveness using innovative automation solutions.

Process Controller (SIMATIC S7-400)

The manual applies to the S7-400 automation system, including the following CPUs:
• CPU 412-1; (6ES7412-1XF04-0AB0)
• CPU 412-2; (6ES7412-2XG04-0AB0)
• CPU 414-2; (6ES7414-2XG04-0AB0)
•CPU 414-3; (6ES7414-3XJ04-0AB0)
• CPU 416-2; (6ES7416-2XK04-0AB0)
• CPU 416-2F; (6ES7416-2FK04-0AB0)
• CPU 416-3; (6ES7416-3XL04-0AB0)
• CPU 417-4; (6ES7417-4XL04-0AB0)

Power + Efficiency (SIMATIC S7-1500 plus TIA Portal)

The SIMATIC S7-1500 controller series with the high-end CPU 1518 and the new controllers in compact design, CPU 1511C and CPU 1512C, is the new generation of controllers in the TIA Portal and a milestone for automation. It ensures highest efficiency and maximum usability for medium and high-end applications in machine and system automation

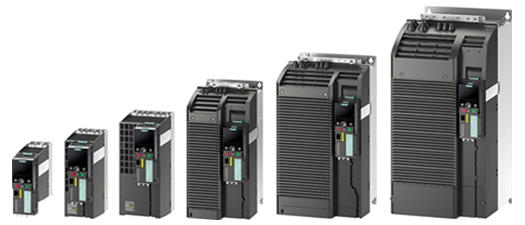

AC Drives

Power Modules PM240-2 :-
PM240-2 Power Modules have a braking chopper (four-quadrant applications) and are suitable for a large number of applications in general machinery construction. Power Modules PM250 :-
PM250 Power Modules are suitable for the same applications as the PM240 Power Modules. Any braking energy is directly fed back into the line supply (four quadrant applications - a braking chopper is not required).

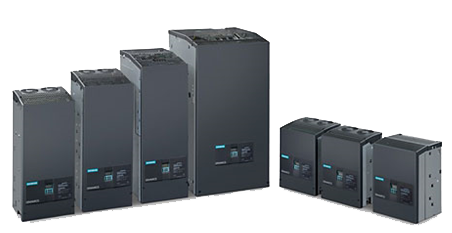

DC Drives

With DC drives from Siemens you can significantly reduce drive technology costs. SINAMICS and SIMOREG converter families deliver top performance and integrated intelligence for maximum availability. Perfectly aligned to our DC motors, our DC drives offer maximum availability and user friendliness. SINAMICS DCP is a highly innovative bidirectional DC-DC converter and completes our offering for grid applications. It suits perfectly for industrial as well as for multi-generator applications. THYRIPOL excitation system is suitable from low to high power classes, mainly in hydroelectric, gas and steam power plants and set itself apart with the high level of reliability and efficiency.

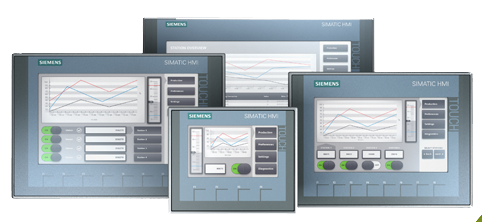

HMI (Human Machine Interface)

Visualization allows for considerably increased process quality with compact plants or smaller applications. Featuring all important HMI basic functions, SIMATIC HMI Basic Panels 2nd Generation thus open up completely new possibilities in terms of operation and monitoring also in the field of mechanical engineering at a particularly attractive price.

Like all other devices in our product range, Basic Panels 2nd Generation offer proven SIMATIC quality and, regardless of display size, numerous software functions as standard – for example, alarm logging, recipe management, trend functions and language switching.

SIMATIC HMI Basic Panels 2nd Generation can be configured via SIMATIC WinCC (TIA Portal) in the cost-efficient Basic Edition which already offers the outstanding usability and unprecedented engineering efficiency of the Engineering Framework. The user can easily create visualization applications within short time.

As the software is scalable, he can start with a small solution and further expand it any time as required – for example by increasing the number of tags or change to panels of another performance range.

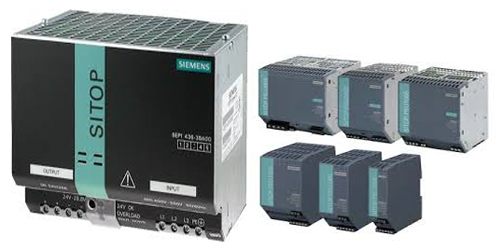

Sitop - Siemens Make Power Supplies

The power supplies are characterized by their low power loss over the entire load range. Power loss is extremely low even during no-load operation, which is why they are ideal, for example, for the efficient supply of machinery and equipment that are often in stand-by mode. The SITOP PSU100C switched-mode power supplies have a wide-range input for AC and DC networks, with plug-in terminals allowing a simple electrical connection. The wide range of temperatures together with comprehensive certifications offer universal application options combined with the proven SITOP reliability. To further increase the availability, the SITOP compact power supply units can be combined with DC UPS and redundancy modules.

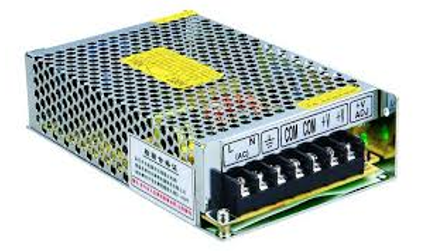

SMPS (Switching Mode Power Supply)

A switched-mode power supply (switching-mode power supply, switch-mode power supply, switched power supply, SMPS, or switcher) is an electronic power supply that incorporates a switching regulator to convert electrical power efficiently. Like other power supplies, an SMPS transfers power from a source, like mains power, to a load, such as a personal computer, while converting voltage and current characteristics. Unlike a linear power supply, the pass transistor of a switching-mode supply continually switches between low-dissipation, full-on and full-off states, and spends very little time in the high dissipation transitions, which minimizes wasted energy. Ideally, a switched-mode power supply dissipates no power. Voltage regulation is achieved by varying the ratio of on-to-off time. In contrast, a linear power supply regulates the output voltage by continually dissipating power in the pass transistor. This higher power conversion efficiency is an important advantage of a switched-mode power supply. Switched-mode power supplies may also be substantially smaller and lighter than a linear supply due to the smaller transformer size and weight.

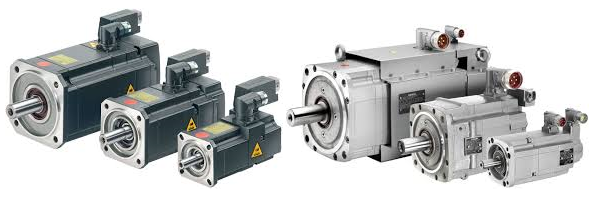

Servo Motors

SIMOTICS S-1FK7 motors are permanent magnet excited synchronous motors which are available in the versions Compact, High Dynamic and High Inertia. The self-cooled motors are characterized by superior overload capability, ruggedness and compactness. The connection via rotatable connectors and preassembled cables ensures a flexible, fast and safe connection to the converter. The SIMOTICS S-1FT7 servomotors are permanent magnet synchronous motors with highly compact dimensions. They meet the most stringent demands on precision, dynamics and speed setting range as well as on high degrees of protection and ruggedness. The motors are fitted with the latest encoder technology and are optimized for operation with our fully digital drive and control systems. Natural, external or water-cooling are cooling types that can be selected. In the case of natural cooling, the developing thermal loss is drawn off via the surface area whereas an attached fan forces thermal loss away with external cooling. Maximum cooling - and, therefore, maximum performance - can be achieved with water-cooling.

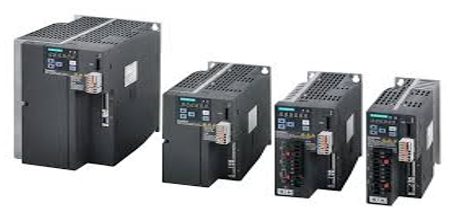

Servo Drives

The servo drive system comprises the basic SINAMICS V90 servo converter and SIMOTICS S-1FL6 servomotor. The system features eight converter frame sizes and seven motor shaft heights to cover a performance range from 0.05 kW to 7.0 kW for operation in single-phase and three-phase networks. Can be simply integrated via PTI, PROFINET, USS, Modbus RTU. The SINAMICS V90 servo drive system enables a wide range of simple Motion Control tasks to be implemented cost-efficiently and conveniently with the focus being on dynamic motion and processing.

SINAMICS V90 Servo Drive System – An Overview of its Strengths
• Optimized servo performance
• Cost effective
• Easy to use
• Reliable operation
• With SIMATIC controllers - a strong team in the TIA Portal

Control Panels

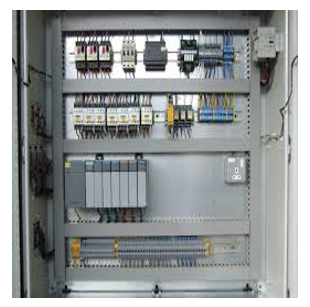

PLC Panels

Programmable logic controller (PLC) control panels or also known as PLC Automation Panel are one of the most important and efficient kinds of control panels. Which are generally used in variety of electronic and electrical circuit fittings. PLC Control Panels we manufacture are highly capable of giving higher output at less power consumption. Integrated with solid PLC logic and flawless PLC hardware programming. Control panel consist of a controller. Controller may be PLC, DCS, relay or some other type. It gives digital signal input signal to the MCC panel to start the motor. Control panel works based on the PLC /DCS program or the relay logic. Instruments are normally connected to control panel. Indications for the interlocks also will be there in control panel. Nowadays single panel is used of using separate control and MCC panel. Ease in modification of logic, reduced size, means of remote communications and advances in the technology have made PLC Automation Control Panels an edge over conventional relay based systems. Control Systems Engineers has provided PLC based Panels from PLC of Allen Bradley, Siemens, Modicon, GE Fanuc. From small I/O application to the complex I/O systems are provided by the Control Systems Engineers. Control Systems Engineers have developed communication software's for remote communication of the PLC Panels in various different protocols. With PLC based Panels HMI/MMI are provided to provide the operator various messages and controls of the process plants touch screen MMI are provided. To effective control of the system.
